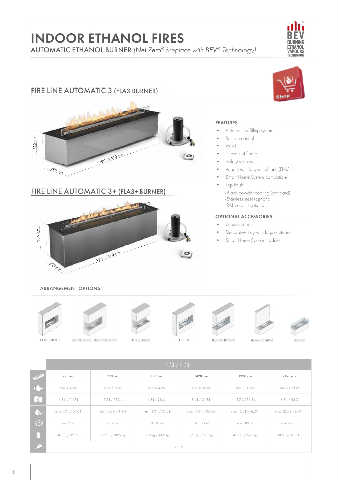

INDOOR ETHANOL FIRES BEV INDOOR ETHANOL FIRES BEV
BURNING
BURNING
®
®
®
AUTOMATIC ETHANOL BURNER (Net Zero fireplace with BEV Technology) ETHANOL AUTOMATIC ETHANOL FIREPLACE (Net Zero fireplace with BEV Technology) ETHANOL
®
VAPOURS
VAPOURS
TECHNOLOGY TECHNOLOGY
FIRE LINE AUTOMATIC 3 (FLA3 BURNER) FORMA FIREPLACE (with FLA3 / FLA3+ burner)

FEATURES
• FLA3/FLA3+ technical features
FEATURES
• Zero clearance – installation in combustible
• Automatic refilling system materials
220 mm • Remote control • Heat deflector - mount TV above the fireplace
• Wi-Fi
• 6 lenghts and 7 arrangement options
790 - 2490 mm • 6 levels of flame 508 mm • Easy installation
• Safety sensors
• Higher side glass panels available in Tunnel,
• Variant with larger fuel tank (FLA3+) Room Divider and Island models
280 mm
• Smart Home System compatible
• Top finish: OPTIONAL ACCESSORIES
FIRE LINE AUTOMATIC 3+ (FLA3+ BURNER) -Black powder coating (standard) (viewing area dimension) 1000 - 2700 mm • Decorative tray with logs or stones
-Stainless steel (optional) 406 mm • Smart Home System module
-RAL colour (optional)

OPTIONAL ACCESSORIES
• Glass screens
305 mm • Decorative tray with logs or stones
• Smart Home System module

790 - 2490 mm

280 mm

ARRANGEMENT OPTIONS
ARRANGEMENT OPTIONS

SINGLE-SIDED LEFT CORNER / RIGHT CORNER THREE-SIDED TUNNEL ROOM DIVIDER AGAINST WALL ISLAND
SINGLE-SIDED LEFT CORNER RIGHT CORNER THREE-SIDED TUNNEL ROOM DIVIDER ISLAND

FLA3 / FLA3+
FORMA FIREPLACE WITH FLA3 / FLA3+ BURNER
790 mm 990 mm 1190 mm 1490 mm 1990 mm 2490 mm
burner 790 mm burner 990 mm burner 1190 mm burner 1490 mm burner 1990 mm burner 2490 mm
max. 4.4 kW max. 7.0 kW max. 9.4 kW max. 13.0 kW max. 18.0 kW max. 22.5 kW Fireplace 1000 mm Fireplace 1200 mm Fireplace 1500 mm Fireplace 1800 mm Fireplace 2300 mm Fireplace 2700 mm
Fla3 4.3 L Fla3 5.5 L Fla3 6.8 L Fla3 8.6 L Fla3 11.7 L Fla3 14.8 L
4.3 L / 14.7 L 5.5 L / 17.2 L 6.8 L / 21.0 L 8.6 L / 26.8 L 11.7 L / 36.3 L 14.8 L / 45.9 L
Fla3+ 13.4 L Fla3+ 17.2 L Fla3+ 21.0 L Fla3+ 26.8 L Fla3+ 36.3 L Fla3+ 45.9 L
max. 9.0 h / 29.0 h max. 10.0 h / 31.0 h max. 11.0 h / 35.0 h max. 11.0 h / 35.0 h max. 12.0 h / 36.0 h max. 12.0 h / 36.0 h Fla3 max. 9.0 h Fla3 max. 10.0 h Fla3 max. 11.0 h Fla3 max. 11.0 h Fla3 max. 12.0 h Fla3 max. 12.0 h
Fla3+ max. 29.0 h Fla3+ max. 31.0 h Fla3+ max. 35.0 h Fla3+ max. 35.0 h Fla3+ max. 36.0 h Fla3+ max. 36.0 h
min. 44 m 3 min. 70 m 3 min. 94 m 3 min. 130 m 3 min. 180 m 3 min. 225 m 3
min. 44 m 3 min. 70 m 3 min. 94 m 3 min. 130 m 3 min. 180 m 3 min. 225 m 3
24.1 kg / 32.0 kg 27.5 kg / 38.5 kg 33.0 kg / 44.0 kg 39.5 kg / 52.5 kg 49.5 kg / 67.5 kg 58.5 kg / 81.5 kg
230 V
230 V
